Henan HTX Group Co., Ltd. We constant insist on the principle : With us your money is safe ,your business if safe. We believe that the quality is our culture and effort to be the leader of mold in the
5 Years
| Ask Lasest Price | |
| Brand Name : | HTX |
| Model Number : | HTX-P-01 |
| Certification : | POSI CERTIFICATE |
| Price : | 40000-200000/USD |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50Sets/Month |
| Delivery Time : | 30Days |

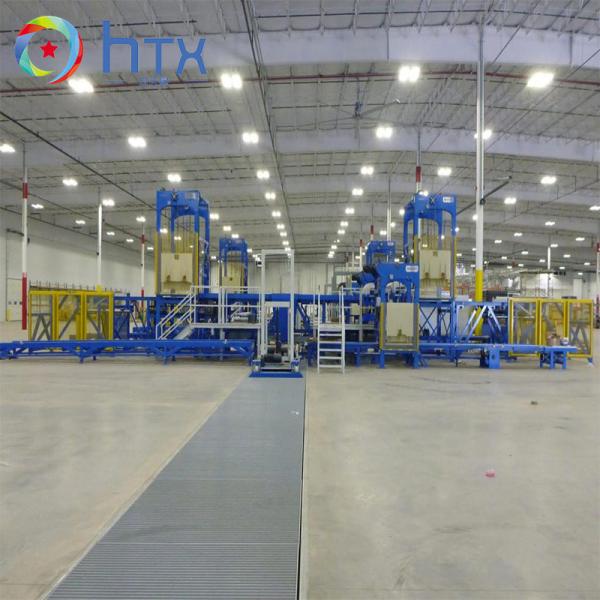

Fully Automatic Concrete Wall Panels Making Machine Veneer Stone Production Line
Veneer stone production line is a specialized manufacturing system used to produce veneer or thin stone panels that mimic the appearance of natural stone. Veneer stone panels are commonly used as a decorative covering for interior and exterior walls, fireplaces, and other architectural elements. The production line consists of various machines and processes that transform raw materials into finished veneer stone panels.The production line starts with the preparation of raw materials. This typically involves sourcing high-quality aggregates (such as sand, gravel, and crushed stone) and cementitious materials. The aggregates are carefully selected to achieve the desired color and texture of the final veneer stone product.raw materials are accurately measured and combined in a concrete mixer or batching plant. The mixing process ensures the aggregates and cementitious materials are evenly distributed and properly blended. Additives may be included in the mix to enhance workability, color, or other desired properties.The production line includes molds or formwork that define the shape, size, and texture of the veneer stone panels. The molds are usually made of durable materials like rubber or fiberglass and can be customized to produce different stone panel designs and dimensions.Once the veneer stone panels have sufficiently cured, the molds are opened, and the panels are carefully demolded. The panels may undergo additional finishing processes, such as surface grinding, polishing, or texturing, to achieve the desired appearance and texture of natural stone.Veneer stone production lines can vary in terms of automation, capacity, and specific features, depending on the manufacturer and the desired production output. These production lines are designed to optimize efficiency, consistency, and aesthetics in the manufacturing of veneer stone panels.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 | Hydraulic driving;Auto feeding; vibrating and timing feeding | 7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds,
rubber molds and plastic molds, size range from 200*200mm to
1500*1500mm, available for producing the artificial stone both for
paving tile molds, 3D wall molds, wall panel molds, roadside stone
molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
|
|
