| Brand Name : | HTX |
| Model Number : | HTX-P-01 |
| Certification : | POSI CERTIFICATE |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50Sets/Month |
| Delivery Time : | 30Days |
| Price : | 15000-80000/USD |

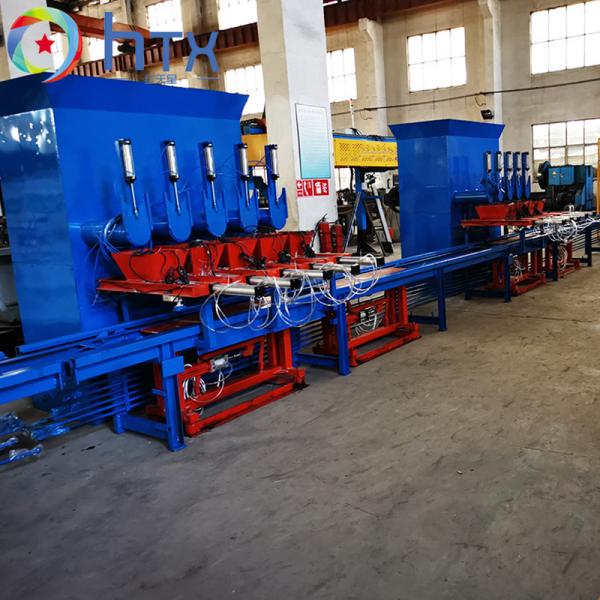

The production line for road edge stones typically involves the
following steps:
1.Raw Material Preparation: The process begins with the preparation
of raw materials. The main components of road edge stones are
usually concrete or natural stone aggregates. These materials are
carefully selected and mixed with cement, water, and additives (if
required) to form a workable mixture.
2.Molding: The prepared mixture is poured into molds or forms that are specifically designed to shape the road edge stones. The molds can be made of metal, fiberglass, or other materials, and they are usually reinforced to withstand the pressure and vibration during the production process. The mixture is poured into the molds and compacted to ensure proper density and strength.
3.Curing: Once the molds are filled, the road edge stones are left to cure and harden. This can be done through a process called air curing, where the stones are exposed to air and allowed to naturally gain strength over time. Alternatively, accelerated curing methods, such as steam curing or the use of curing chambers, may be employed to reduce the curing time.
4.Demolding: After the curing process is complete, the molds are removed, and the newly formed road edge stones are demolded. This step requires care to ensure that the stones are not damaged during the demolding process.
5.Surface Finishing: Depending on the desired appearance and functionality of the road edge stones, additional surface finishing may be performed. This can include processes such as grinding, polishing, or applying textured finishes to enhance the aesthetic appeal and improve slip resistance.
6.Quality Control: Before packaging and distribution, the road edge stones undergo a quality control process. Each stone is inspected for defects, including cracks, chipping, or irregularities in shape and size. Strength and durability tests may also be conducted to ensure that the stones meet the required standards.
7.Packaging and Distribution: The final step involves packaging the road edge stones for transportation and distribution to construction sites. They are typically stacked on pallets or packaged in crates to facilitate easy handling and prevent damage during transit.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 | Hydraulic driving;Auto feeding; vibrating and timing feeding | 7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds,
rubber molds and plastic molds, size range from 200*200mm to
1500*1500mm, available for producing the artificial stone both for
paving tile molds, 3D wall molds, wall panel molds, roadside stone
molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
|
|
