| Ask Lasest Price | |
| Brand Name : | HTX |
| Model Number : | HTX-P-01 |
| Certification : | POSI CERTIFICATE |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50Sets/Month |
| Delivery Time : | 30Days |
| Price : | 15000-80000/USD |

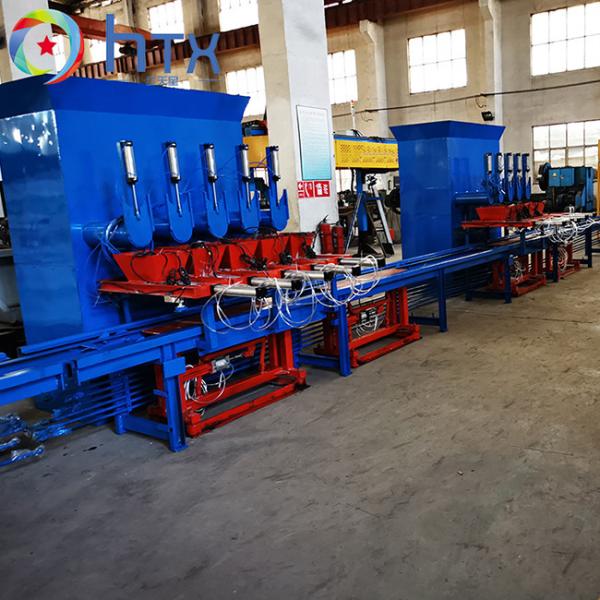

The concrete dosing machine typically consists of multiple hoppers or bins, each containing a specific type and size of aggregate. The number of hoppers can vary depending on the desired concrete mix design and the number of aggregates used. The machine is equipped with conveyor belts or other feeding mechanisms that transfer the aggregates from the hoppers to a weighing system.
The operation of a concrete dosing machine involves the following
steps:
1.Aggregates Loading: The aggregates, such as sand, gravel, and crushed stone, are loaded into the individual hoppers of the dosing machine. Each hopper is designated for a particular aggregate size or type.
2.Weighing: The dosing machine is equipped with load cells or weighing systems that measure the weight of the aggregates as they are discharged from the hoppers. The load cells provide accurate weight readings, allowing precise dosing of the aggregates.
3.Proportioning: The dosing machine is programmed with the desired mix proportions for the concrete to be produced. Based on these proportions, the machine controls the discharge of each aggregate from the hoppers, ensuring the correct ratio of materials.
4.Transfer: As the aggregates are weighed and proportioned, they are transferred from the hoppers to a conveyor belt or other conveying mechanism. The conveyor belt transports the aggregates to the mixing unit of the concrete batching plant.
5.Repeat Process: The dosing machine continues the above steps for each batch of concrete to be produced. It ensures consistent and accurate dosing of the aggregates throughout the production process.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 | Hydraulic driving;Auto feeding; vibrating and timing feeding | 7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds,
rubber molds and plastic molds, size range from 200*200mm to
1500*1500mm, available for producing the artificial stone both for
paving tile molds, 3D wall molds, wall panel molds, roadside stone
molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
|
|
