Henan HTX Group Co., Ltd. We constant insist on the principle : With us your money is safe ,your business if safe. We believe that the quality is our culture and effort to be the leader of mold in the
5 Years
| Ask Lasest Price | |
| Brand Name : | HTX |
| Model Number : | HTX-P-01 |
| Certification : | POSI CERTIFICATE |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 50Sets/Month |
| Delivery Time : | 30Days |
| Price : | 40000-200000/USD |

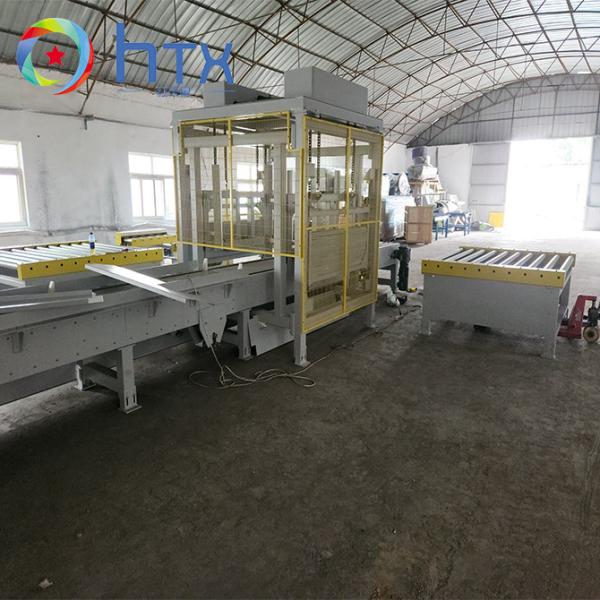

An artificial stone manufacturing machine, also known as an artificial stone production line or artificial stone making machine, is a specialized piece of equipment used for the production of artificial stone products. Artificial stone, also called engineered stone or cultured stone, is a composite material made from a mixture of natural aggregates, resins, and pigments. The machine automates the manufacturing process, enabling efficient and consistent production of artificial stone products. Here are the key components and processes typically associated with an artificial stone manufacturing machine:
1.Material Mixing and Preparation: The production process begins with the preparation of the raw materials. The machine may have a material mixing system where natural aggregates (such as marble, quartz, or granite chips), resins, pigments, and other additives are combined to create a well-mixed mixture. The mixing process ensures the proper distribution of aggregates and pigments throughout the material.
2.Molding and Casting: The prepared mixture is fed into molds or forms that define the shape and dimensions of the artificial stone products. The machine applies pressure or vibration to compact the mixture and remove air voids, ensuring the proper formation of the artificial stone. Various mold designs and sizes can be used to produce different types of artificial stone products, such as slabs, tiles, or decorative elements.
3.Curing and Hardening: Once the artificial stone products are cast, they require a curing process to harden and gain strength. The machine may include a curing chamber or controlled environment where the products are placed for a specific period. Curing conditions, such as temperature and humidity, are carefully regulated to optimize the curing process and ensure the desired physical properties.
4.Demolding: After the artificial stone products have sufficiently cured and hardened, they are demolded from the molds. The machine incorporates hydraulic or mechanical systems that release the cured products from the molds without causing damage. The demolding process may also involve automated ejecting mechanisms.
5.Finishing and Surface Treatment: After demolding, the artificial stone products may undergo additional finishing processes to achieve the desired surface appearance and texture. This can include processes such as grinding, polishing, honing, or applying surface coatings to enhance the aesthetics and protect the products.
6.Quality Control and Inspection: Throughout the production process, quality control measures are implemented to ensure that the artificial stone products meet the required standards. Visual inspection, dimensional checks, and testing for strength and other properties may be performed to ensure the quality of the final products.
7.Packaging and Distribution: The finished artificial stone products are packaged and prepared for transportation or distribution. They may be stacked and secured in packaging materials to protect them during handling and shipping.
Specification:
| Name | Model | Specification | Size(mm) | Power(Kw) | Capacity(m2/day) | Weight(Kg) |
| Wet Cast Machinery | HTX-P-01 | Hydraulic driving;Auto feeding; vibrating and timing feeding | 7000*1000*1800 | 12.7 | 1000-1500 | 2000 |
| Wet Cast Machinery | HTX-P-02 | Chain drived;Auto feeding,auto vibration | 8000*1100*1600 | 4.05 | 800-1000 | 1500 |
Applications
Wet cast machinery, is suitable for different silicone molds,
rubber molds and plastic molds, size range from 200*200mm to
1500*1500mm, available for producing the artificial stone both for
paving tile molds, 3D wall molds, wall panel molds, roadside stone
molds, retaining wall molds, wall cap molds, etc.
Support and Services
Wet Cast Machinery technical support and services include:
|
|
