    Ceramic Tile Making Wet Cast Doser Machinery For Concrete Wall Floors

    Ask Lasest Price
    Brand Name : HTX
    Certification : HTX-P-01
    Price : 15000-80000/USD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500Sets/Month
    Delivery Time : 50Days
    • Product Details
    • Company Profile

    Ceramic Tile Making Wet Cast Doser Machinery For Concrete Wall Floors

    Wet Cast Doser Machine Tile Making Machinery For Concrete Wall Floors Ceramic Tiles


    Product Description

    A wet casting doser machine is a specialized piece of equipment used in the production of concrete products, such as paving stones, slabs, and retaining wall blocks. This machine is designed to accurately measure and dispense the ingredients needed for wet casting, which typically include cement, aggregate, water, and color pigments.


    The wet casting doser machine typically consists of the following components: 1.Hopper: A large container that holds the dry ingredients, such as cement and aggregate. 2.Weighing system: A system of load cells and sensors that accurately measure the weight of the dry ingredients as they are dispensed from the hopper. 4.Mixing chamber: A large container where the dry ingredients are mixed with water and color pigments to create a wet concrete mixture. 5.Control panel: An interface that allows the operator to set the desired mix proportions and control the dosing and mixing processes.


    The wet casting doser machine operates by first dispensing the dry ingredients from the hopper into the mixing chamber, where they are mixed with water and color pigments to create a wet concrete mixture. The machine's weighing system ensures that the correct amount of each ingredient is dispensed, while the dosing system controls the flow of water and color pigments to achieve the desired mix proportions.


    Once the wet concrete mixture is prepared, it is typically transportedto a mold or form using a conveyor or other handling equipment. The wet casting doser machine can be integrated into a larger production line, where the concrete mixture is poured into molds or forms, allowed to cure, and then removed to create the finished concrete products.


    The wet casting doser machine is an essential component in the production of high-quality concrete products. These machines are highly automated and can be programmed to produce a wide range of mix designs, allowing manufacturers to produce custom products to meet specific customer requirements. The precision and consistency of the dosing and mixing processes ensure that the finished products have the desired strength, durability, and aesthetic properties.


    Specifications


    NameModelSpecification

    Size

    (mm)

    Power

    (Kw)

    Capacity

    (m2/day)

    Weight

    (Kg)

    Artificial stone production lineHTX-P-01

    Hydraulic driving;Auto feeding;

    vibrating and timing feeding

    7000*1000*180012.71000-12002000
    Wet Cast MachineryHTX-P-01AFull Auto,timing feeding and vibration, weighing system;12000*1000*20009.1800-10002000

    Ceramic Tile Making Wet Cast Doser Machinery For Concrete Wall FloorsCeramic Tile Making Wet Cast Doser Machinery For Concrete Wall Floors


    Applications

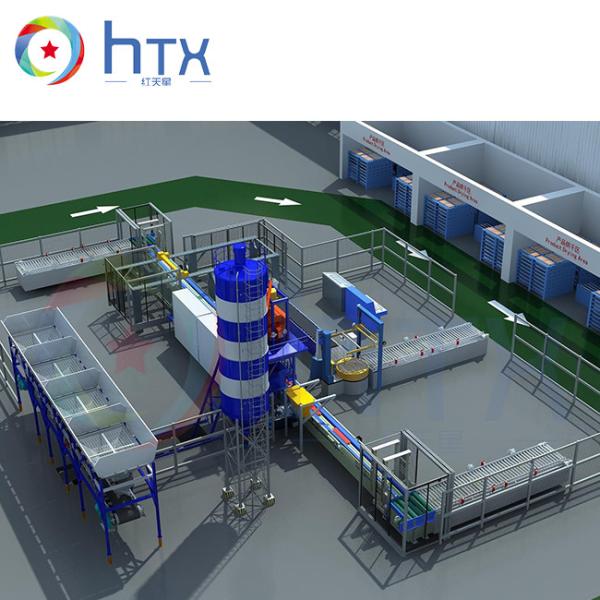

    Auto Wet Conrete Dosing System Production line advantages:

    1.More efficient production, can achieve 800M2 Per day(8hrs)

    2.Labors saving for production, 5-6 workers needed only, can largely reduce the labor cost of factory output.

    3.Multiple function for production, it include unloading, painting, concrete dosing and stacking, and available usage for plastic molds of floor tile and terrazzo tile, silicone molds for artificial stone etc.

    4. The auto spray painting machine, has function for mold oil sparying, stroll color painting and full color painting, also it can be turned on/off separately.
