    Precast Concrete Dosing Machine Wall Brick Artificial Stone Production Line

    Ask Lasest Price
    Brand Name : HTX
    Certification : HTX-P-01
    Price : 15000-80000/USD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500Sets/Month
    Delivery Time : 50Days
    • Product Details
    • Company Profile

    Precast Concrete Dosing Machine Wall Brick Artificial Stone Production Line

    Precast Cast Concrete Dosing Machine Artificial Stone Production Line

    Product Description


    Artificial marble stone mold making machine production line is equipped with an automatic spraying system. The spraying system includes an air compressor, pneumatic air, and three rows of spray gun nozzles. The first row has 6 nozzles, which are used to spray air and remove dust on the mold. The 6 nozzles are controlled at the same time. need to be controlled individually. The second row of 2 spray guns is used for color spot spraying. The control system needs to be able to individually control the operation of each spray gun or simultaneously control the work and stop. The third row of three spray guns is used for full spraying. It needs to control 6 nozzles at the same time and does not need to be controlled separately. If there is no need to spray color, the second row and the third row are used to spray release oil.
    full automatic clay artificial stone production line spraying system also has a paint tank that can be stirred automatically to store the prepared paint.

    Concrete dosing system artificial stone production line,adopt technoligly of automatic color pating,concrete adding ,vibrating and tranporting.It largely reduce the manpower used and imporve the efficiency.Additionally,we install 12 pieces airbrush inside machine,and can spray 4 colors at one time.It keep spraying during the silicon moulds moving on the convey belt,thus the final stone will have a gradually varied color.The stone will own a unique color which will be more popular in the market.


    Specifications


    NameModelSpecification

    Size

    (mm)

    Power

    (Kw)

    Capacity

    (m2/day)

    Weight

    (Kg)

    Artificial stone production lineHTX-P-01

    Hydraulic driving;Auto feeding;

    vibrating and timing feeding

    7000*1000*180012.71000-12002000
    Artificial stone production lineHTX-P-01AFull Auto,timing feeding and vibration, weighing system;12000*1000*20009.1800-10002000

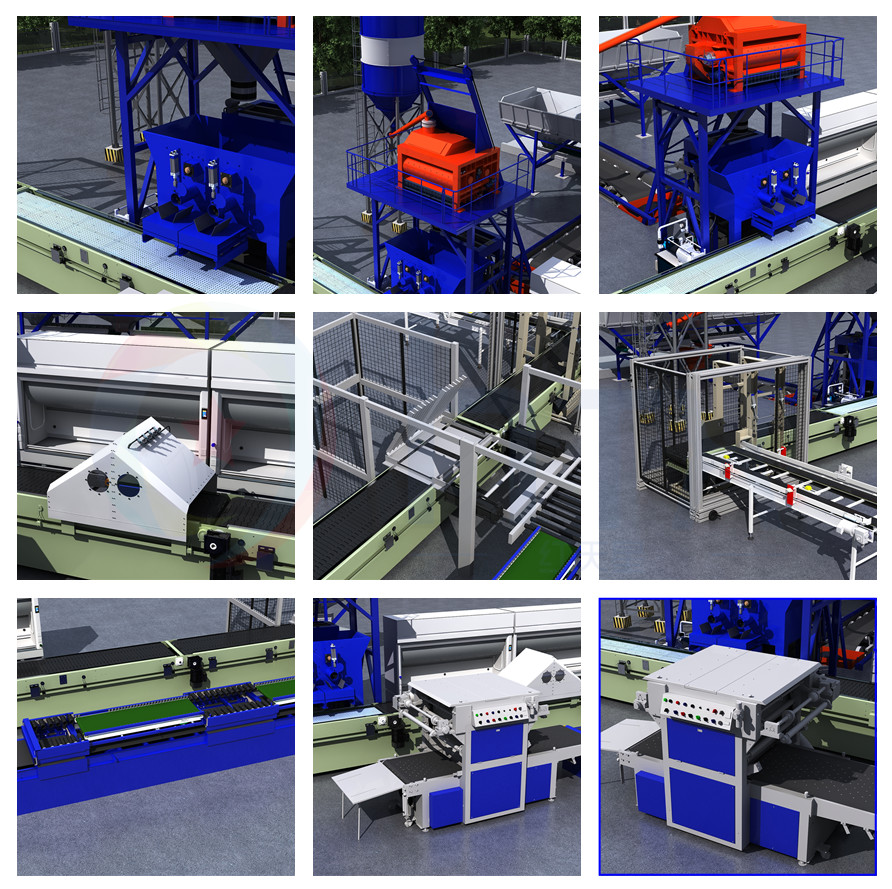

    Precast Concrete Dosing Machine Wall Brick Artificial Stone Production Line

    Precast Concrete Dosing Machine Wall Brick Artificial Stone Production Line
